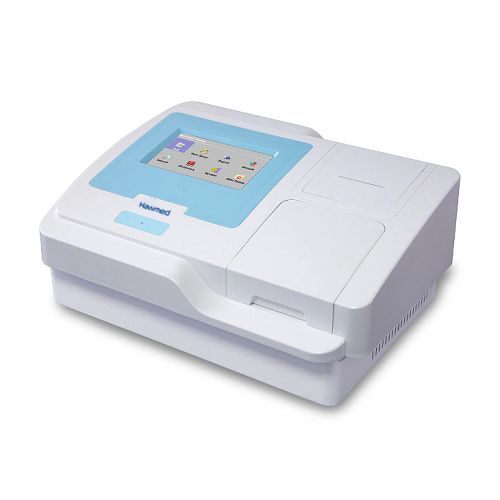

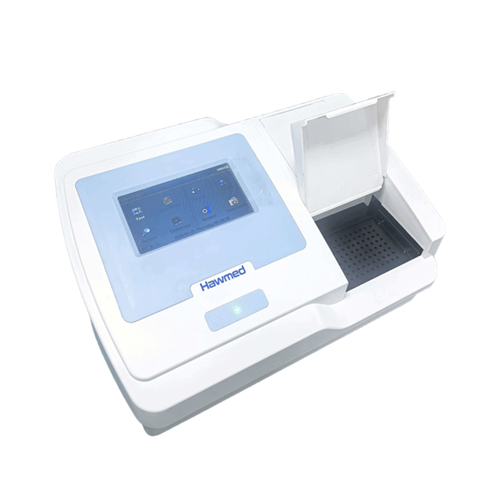

HM96B Elisa Reader

Dimension：

475mm（L）×340mm（W）×200mm（H）

Power supply：

AC 100V~240V, 50/60 Hz

Fuses：

2-φ5×20  BGXP　T 3.15  AL  250V

Working environment：

Environment temperature：+5℃～+40℃；Relative humidity: 15%～80%；Atmosphere range：70kPa～106kPa；Power supply：AC 100V~240V, 50/60 Hz；Transient over-voltage is classified as device class (over-voltage)  class-Ⅱ；Rating pollution level is classified as class-Ⅱ.

Storage temperature：

-10℃～+55℃

Light source：

Quartz halogen lamp OSRAM64607，8V/50W

Wavelength：

405nm，450nm，492nm，630nm，add at most 4 filters with wavelength between 400 nm and 850 nm.

Measuring range：

0.000～4.000A

Reading speed:

Single Wavelength ≤ 3s，Double Wavelength ≤ 6s

Warm-up time：

10 minutes

Computer system:

ARM core series

Programming items：

More than 500

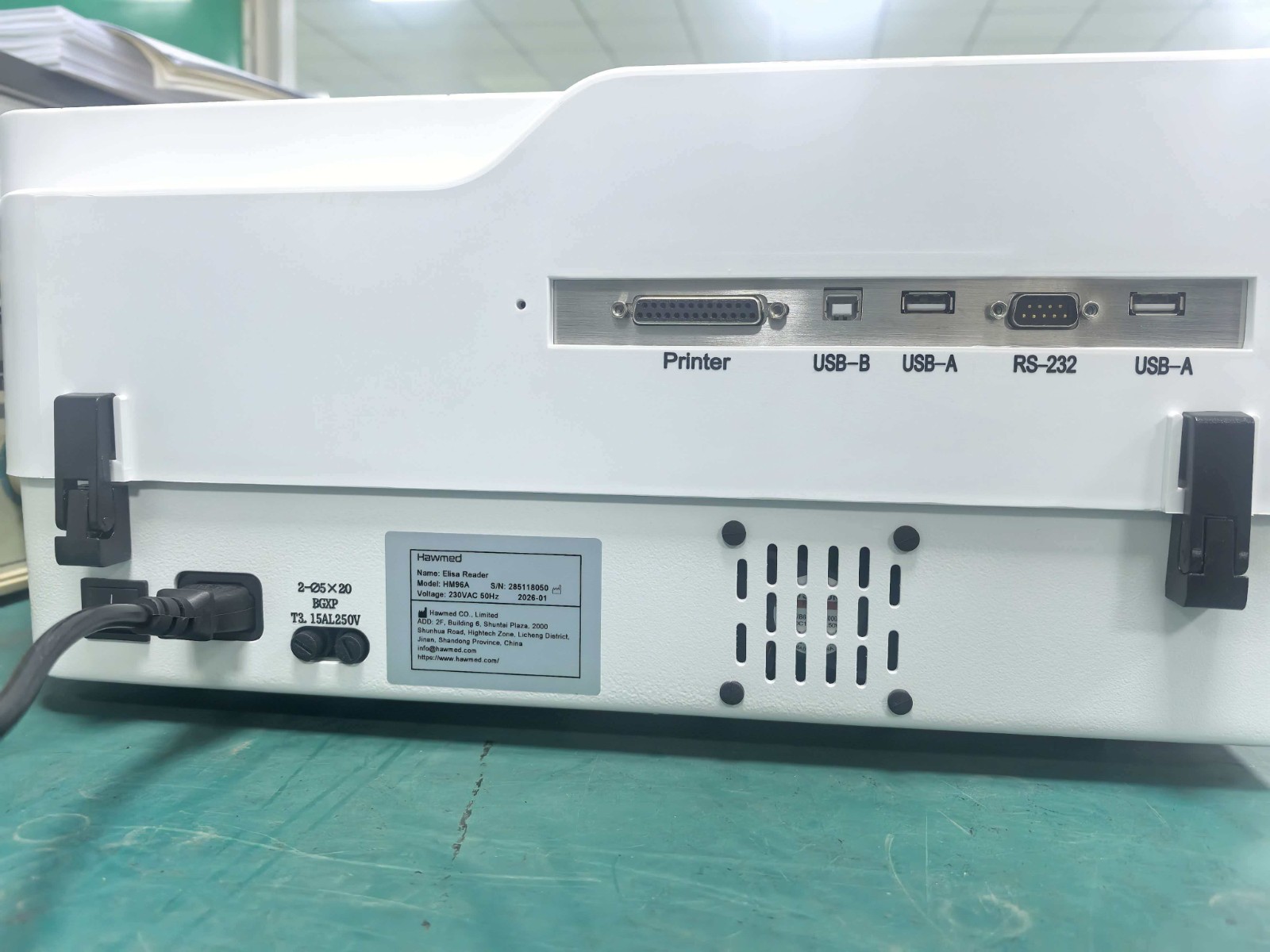

Communication interface：

RS-232 serial、Parallel printer、USB、Mouse and keyboard interface

Display：

LCD dispaly screen

Input mode：

Touch Screen ,Touch pen

Memory Capability：

200,000 test data
