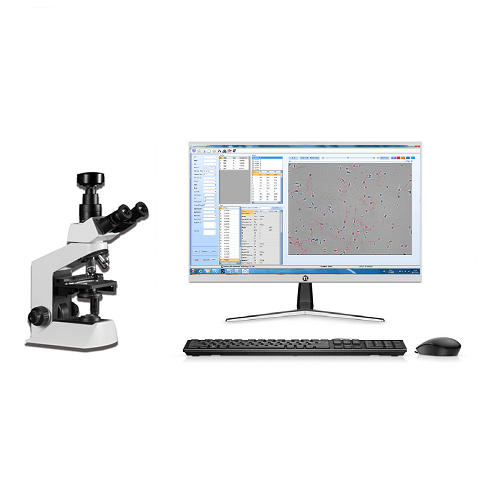

HM6000 Semi Auto Sperm Analyzer

Hawmed Sperm Analyzer

1.Introduction

It can be used for automatic identification of sperm and automatic tracking of sperm movement fast, finish the analysis for a number of parameters in conformity with the WHO international standards and take comprehensive quantitative analysis of sperm activity and static characteristics. It is suitable for clinical semen test, providing an important scientific basis for male fertility.

2. Features

1)International WHO 5th Software

3)There is no limit to the number of visual field groups that can be collected.

5)More than 30 sperm parameters such as sperm density, sperm motility, sperm motility trajectory, sperm motility map, total number of spermatozoa were tested and analyzed. Morphological analysis was performed with various detection parameters.

7)Complete test items cover the vast majority of semen analysis projects, including semenological traits, dynamic analysis of sperm microscopy, morphological analysis, sperm function tests, and chemical analysis，etc.

9)On the basis of WHO's standardization, the sperm morphology analysis module subdivides various types of deformity and deformity rate, and detects a number of morphological indicators.

11)Sperm trajectory can be tracked and color trace curve can be depicted to export. The trajectory line color can be set freely, which can count the sperm and display the sequential digital annotations.

13)Can filter out all kinds of impurities which are different from sperm to ensure the test accuracy.

15)Numeric identification of sperm images is automatically assigned numbers. Individual sperms are numbered independently and the trajectory curve color is optional. Accurate tracking and recognition of the trajectory can be performed to obtain more precise motion parameters and statistical parameters, which greatly improves the accuracy.

17)It supports playback of audit image functions, effectively avoiding missed detection errors.

19)It supports hospital network server sharing and can be sent to network ports such as LIS/HIS.

21)Query function supports flexible statistics of data for each department/doctor segment specimen.

23)Support Consumables.

3. Test Items

1) Sperms density, survival rate of the sperms, the movement locus of sperms, and distribution curve of sperms movement

2) Average speed, total number of the sperms, total numbers of motile sperms, survival rate of the sperms in the curvilinear motion of the sperms

3) Average speed, total number of the sperms, total numbers of motile sperms, survival rate of the sperms in the rectilinear motion of the sperms

4) Average speed, total number of the sperms, total numbers of motile sperms, survival rate of the sperms in the average path motion of the sperms

5) Graded speed of sperms motion: the survival rate of A rapid motion forward, B slow motion forward, C non travel forward, D hyperslow or motionless of the sperms

6) The side-way amplitude of sperms, sperms wing, whipping frequency of sperms, the rate of rectilinear motion, total number

7) Linear speed, average speed of motion, the sperms’ number of linear motion

4. Technical Parameters

1) Maximum of the tested sperms: 1000

2) Range of test speed: 0-180um/s

3) Frame number of picture: 0-75

4) Resolution of particle diameter: 0-150µm/s

5) Analysis time: 1-5 seconds or longer

6) Group number of collected images: 1-25 groups

7) Microscope objective lens: 10x.20x.40x.100x

8) Displayed content of sperm test system is no less than: 1) distribution curve of static sperms, 2) the features data of semen and statistical data from analysis of all the main functions, 3) sperm dynamic trajectory curve, 4) display various  sperms motion speed and energy is arrhythmic map of sperms, 5) case information for management such as patients’ name;

9) Output content from sperms test system is no less than: 1) the main technical data of sperms, 2) sperm dynamic trajectory curve, 3) analysis and determinant histogram 4) case information for management such as patients’ name
