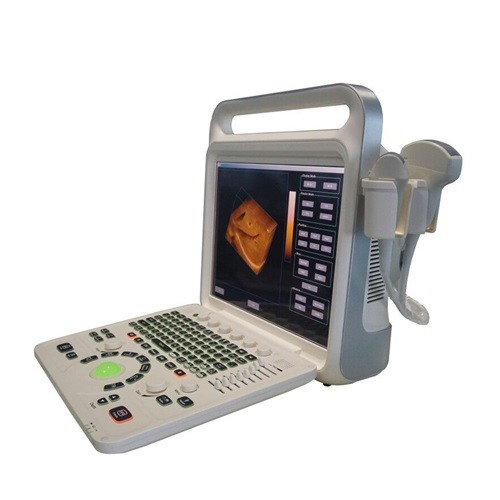

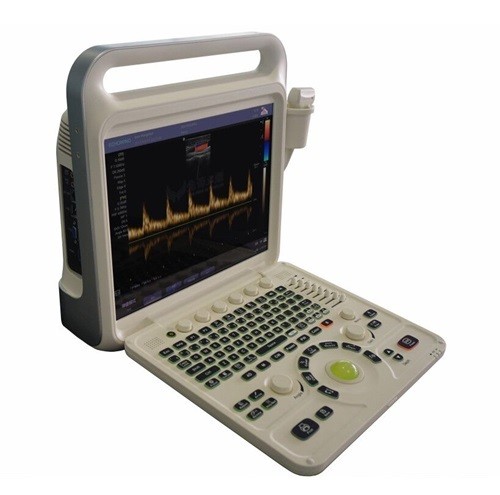

Hawmed Portable Color Doppler
Operation Mode:
*B/2B/4B/M/CFM/PDI/PW
*THI(Tissue Harmonic Imaging)
*Real-time 2D and Color Dual Mode.
*Real-time 2D and Doppler Double Synchronization.
*Real-time 2D ,Doppler and Color triple synchronization.

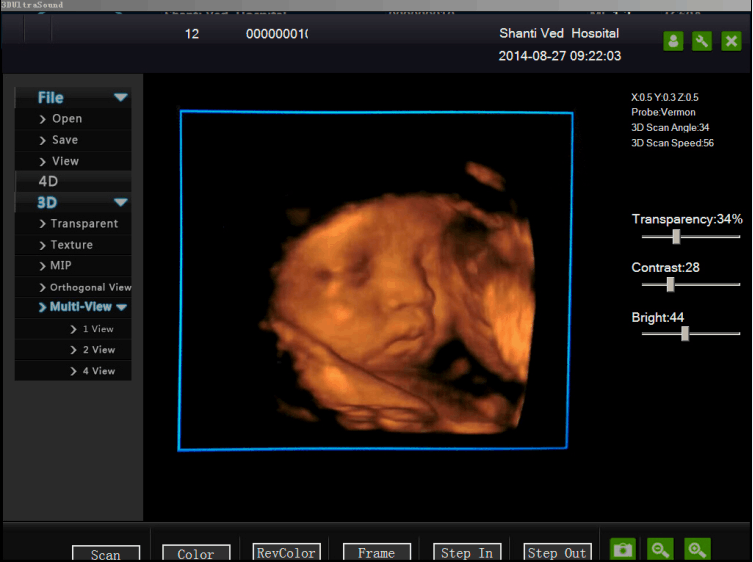

*Free hand 3D imaging(Optional)
*Four-dimensional Imaging (4D Optional)
*Automatic measurement and analysis vascular intima
*Extended imaging
*Compound Imaging
*Probe Interface:Two Active Probe Interface
*Multimedia and peripheral devices:Compact Disc-Recordable,USB portable storage device.
*Digital Printer / Video Printer / Laser Printer / Ink-Jet Printer
*Memory Function:Image Storage,Video Storage,Cineloop(≥300 Fram),Solid disk storage space≥120G.
*Puncture guide line:All kinds of probes can register puncture guide line function.
*The puncture guide line Angle adjustable and can be pre-defined.
*Language:Chinese, English, Russian, Spanish, Portuguese, French.
Measurement / Calculation
--General Measurement
--B mode: distance, area (track method, rectangle method, ellipse method), perimeter (track method, rectangle method, ellipse method), volume (double plane method, area length method, ellipsoid method), angle, ratio, stenosis rate.
--M Mode:Slope, ratio, stenosis rate, heart rate, time.
--D Mode:Doppler blood flow measurement, velocity, acceleration, pressure gradient, time, velocity integral, pulsatility index, resistance index.
--Gynecological measurement and analysis
--Uterus, endometrium, ovary, cervix, follicle measurement.
Obstetric measurement and analysis:
GS gestational sac, CRL head and hip diameter, LV spine length, BPD biparietal diameter, OFD Occipital bone frontal bone diameter, HC head circumference, TAD transverse abdominal diameter, LVW lateral ventricular posterior angle width, HW cerebral hemisphere width, TCD cerebellar lateral diameter , IOD intraocular diameter, OOD external eye distance, BD binocular distance, APTD DBH, TTD transverse DBH, AC abdominal circumference, APD antecedent abdominal diameter, FTA trunk cross-sectional area, HL humerus length, ULNA ulna length, RAD radial length, FL Length of femur, length of tibia, length of fibula of FIB, multiple calculation of APTDxTTD, length of clavicle of clavicle, dysplastic hip (measured hip angle), etc. The gestational age, fetal weight and expected date of birth can be calculated.
Urology measurement and analysis
Prostate volume, bladder volume, residual urine volume, volume of prostate transitional area, hip angle measurement and assessment (neonatal hip dislocation diagnosis), cross-sectional measurement (V-Slice method).
Small organs and Peripheral Blood Vessel Measurement and Analysis
The main measurement and analysis of vascular cross-sectional area, heart rate, per volume, flow per unit time, ejection time, stenosis rate, average velocity of blood flow, RI resistance index, PI pulsatile index.
Measurement report
Obstetric measurement report, gynecological measurement report, cardiac measurement report, urinalysis and other measurement reports. Automatically store measurement results and generate reports symbol
≥95 kinds of symbol position markers with probe position.Through the intuitive body mark detail interface quickly select the body mar.Text markup, presettable text content.Arrow mark, support multiple arrow marks and adjustable direction
