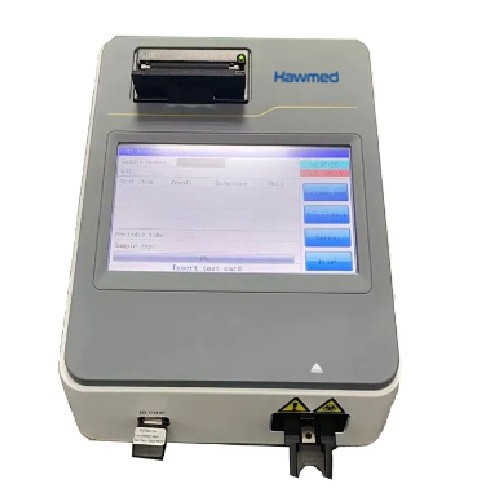

HM1000 POCT Analyzer

Test Item

The product is used cooperatively with immunofluorescence assay kit produced by our company

Excitation light source

LED

Wavelength range

740nm

Test item parameter

The user can read configuration parameters of the instrument from information card

Sample type

Whole blood, serum, plasma, urine and faeces (subject to specification of immunofluorescence assay kit)

Delay test

Delay test time can be set. Place test card in the instrument and test at fixed time after completion of reaction

Test speed

Max 240 times/hour

Power source

a.c.100V-240V 50Hz/60Hz  Host: DC12V 5A

Input power

60 VA

Net Weight

2.0kg

Volume

200×300×140mm

Background number

Fluorescence value should be ≤5

Repeatability

The variable coefficient of fluorescence value of fluorescence test cards of different intensities repeatedly measured by the instrument CV≤2.0%

Stability

The relative deviation between the test result at 4th hour and the 8th hour after the instrument is working stablly and the test result when the instrument just works stably is limited to ±3.0%.

Accuracy

When the instrument tests the calibrated fluorescence test card, the deviation between the measured fluorescence value and the calibration value of the fluorescence test card is ±3.0%.

Measuring time

The time from inserting the fluorescence test card to displaying the test result should not exceed 15s.

Linearity range

Within the concentration range of standards no less than two orders of magnitudes, the linearly dependent coefficient of the fluorescence value and concentration read by the instrument r≥0.990
