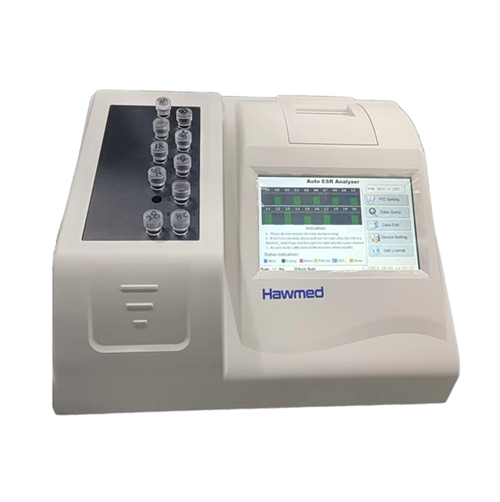

ESR20/40 ESR Analyzer

Measuring principle

Infrared sensor

Analysis result

Westergren ESR value (mm/hr)

Throughput

Up to 80 samples per hour

Reading channels

40

Loading capacity

40 sample at same time

Loading pattern

Random

Measuring time

30 minutes or 60 minutes selectable

Sample interval

3 minutes

Measurement range

(1-140)mm/h

Temperature compensation

Refer to 18°C automatically (selectable)

Reading resolution

±0.1mm

Result resolution

1mm/1h, 1mm/2h

Blood level range

50mm~64mm

Display

Color LCD screen

Input

Touch screen

Interface

RS-232 serial port

Print

Internal thermal recorder

Operation conditions

Temperature 5C°~40°C  Humidity ≤80%

Dimension

365mm×300mm×180mm(L×W×H)

Net weight

11Kg
