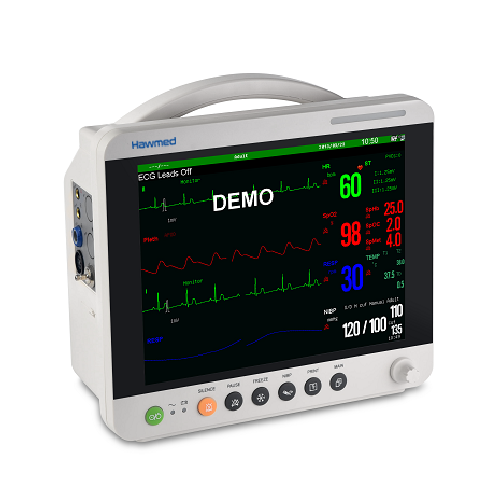

HMP9000 Patient Monitor

Hawmed Patient Monitor

Specifications：

Display:12.1”color TFT

Rolling and refreshing waveform display

Resolution: 800×600

Multi display selectable including:

Large-font display

Trend coexist display

OxyCRG dynamic view display

Bed-to-bed view display

Trace:9 waveforms(7 ECG, 1 SPO2 and 1 RESP)

Sweep speed:12.5mm/s,25mm/s,50mm/s

Indicator: Power/battery indicator light

QRS beep and alarm sound

Battery:Rechargeable lead acid cell, 12v/4AH

Max.24 hour for charging, 4 hours for continue working

Trend:Parameter graphic and tabular trends:

5s/piece, 8 hours;

1min/piece,168 hours(24hour×7days)

5min/piece,1000 hours.

Storage:NIBP: 1000 groups

Alarm: 200 groups

Full disclosure waveforms: 3600S

SD card external storage

Alarm: User-adjustable High, Medium and Low limits 3-level

Audible and visual alarm

Networking:

Connected to central monitoring system

TCP/IP netting platform

Recorder:Build-in, thermal array

Plethysmogram caveform:2 channels

Record mode: manual, on alarm, time-defined

Recording width: 50mm

Printing speed: 50mm/s

Recording type:

Frozen waveform record

NIBP recall record

Trend table record

Alarm record

Fixed -time record
