Introduction

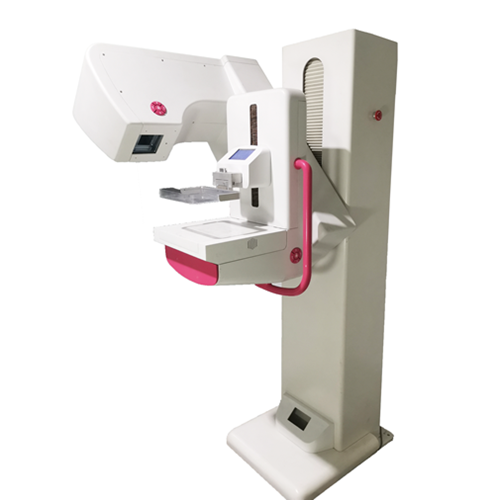

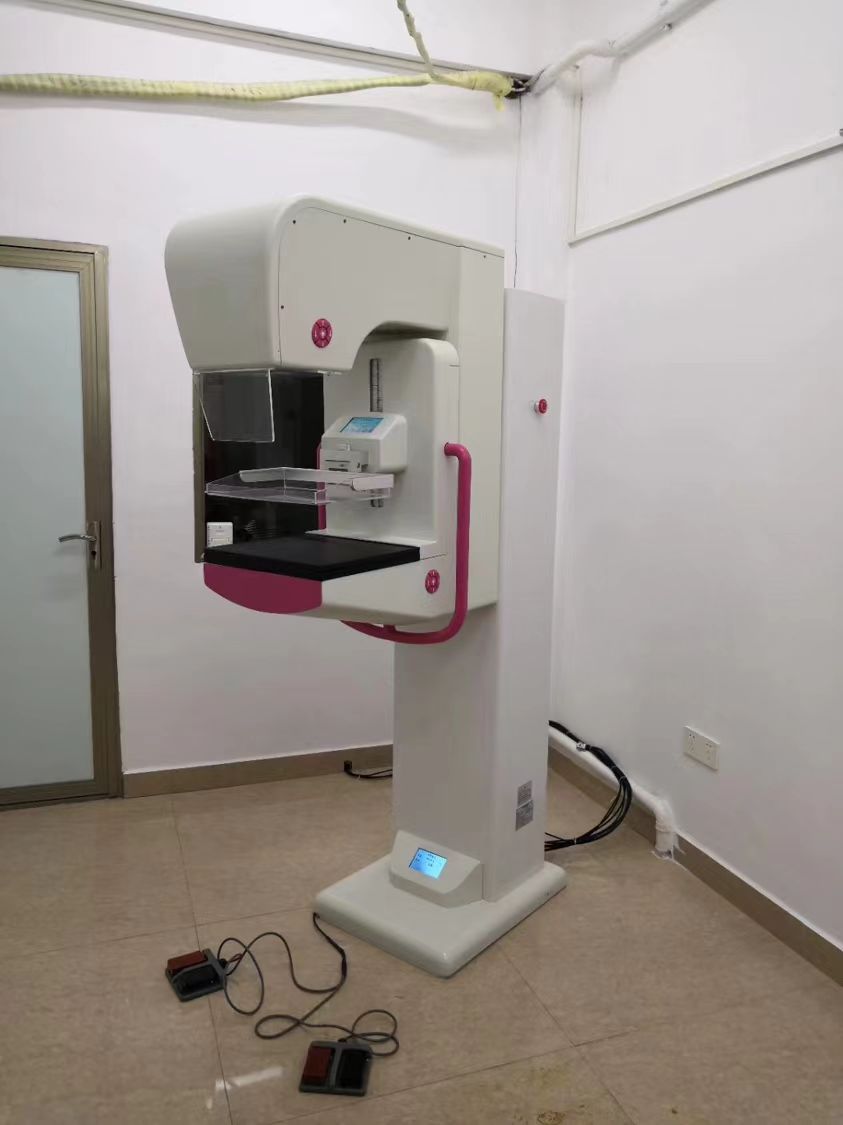

HMM-5kW Digital Mammography System is a professional equipment for breast diseases examination. It is suitable for early detection of mammary gland lesions.
This system adopts the latest technology of flat panel detector, which has a higher sensitivity to X-ray. Its resolution reaches the value of 60lp/cm. It can easily examine calcified lesion less than 0.1mm. By improving the accuracy and sensitivity of mammography diagnosis, it becomes a reliable tool to diagnose early stage of breast cancer.
Features
◆Professional mammography x-ray tube from Italian IAE with molybdenum provides extremely small focus spot, and owns high heat capacity. It guarantees high quality images and long working time.
◆Self R&D 40kHz high voltage generator uses dual-inverter technology, guaranteeing the stability of X-Ray, largely improving the clarity and quality of images with low dose.
◆Unique CMOS flat panel detector provides high-resolution images as it is sensitive to X-ray.
◆Self R&D ‘Console’ software with national patent, provides strong capabilities of post processing. It has leading post-processing algorithm of breast, which could bring you perfect mammary images.
◆24’’ LCD display.
Specifications
Ambient Conditions
Ambient temperature | 10℃~40℃ |
Relative humidity | 30%~75% |
Atmospheric | 70~106kPa |
X-ray Generator
Output power | 5.0KW |
Frequency | 80-200KHZ |
Current | 10-200mA |
Voltage | 20-50KV |
Exposure time | 5-10000s |
mAs | 0.5mAs-600mAs |
Self-diagnostic system | Tube overload protection |
X-ray Tube
Brand | IAE (Italy) |
Anode type | Rotating Anode |
Focal spot value | 0.1mm /0.3mm |
Maximum voltage | 40KV |
Anode heat storage capacity | 300KHU |
House heat storage capacity | 426KHU |
Target material | Molybdenum |
Anode rotation speed | 10000rpm |
Maximum anode heat dissipation rate | 500W |
X-ray detector( Flat Panel Detector)
Scintillator | Cesium Iodide |
Active area | 235*290mm |
Active pixel | 2762*3408 |
Pixel pitch | 85um |
AD Conversion(bit) | 16 |
Spatial resolution | 60Lp/cm |
Mechanical Device
SID | 650mm |
Exposure field | 240mm*300mm(Maximum) |
Up-down movement of c-arm | ≥600mm |
Rotational angles of c-arm | -90°~+90°(Electromagnetic lock) |
Rotational angles of tube | -30°~+30° |
Compression Paddle
Movement type | Electric |
Up-down movement range | ≥210mm |
Size of compression paddle | 260mm*180mm |
Pressure range | 0~20kg (0.1kg step) |
Workstation
Dual-core CPU | 3.3GHz |
Memory | 4GB |
HDD | 500GB |
Discrete Graphics | 1920*1200 |
Monitor | 24’’ LCD |
DICOM3.0 | Query for integration with any PACS |
Functions | Import/export function |
Image info | |
Management of patient info | |
Post processing | |
Measurement etc. |
