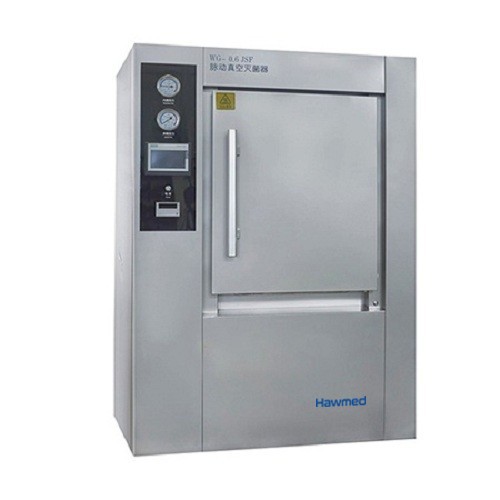

WG Series Pulse Vacuum Autoclave

This scries of pulsation vacuum sterilizer utilizes saturated steam as its sterilization medium which releases a large amount of heat in the stage of condensation, and ensure the sterilizing environment in high temperature and at a certain humidity.

After a period of insulation in such status, sterilization purpose is achieved. The application of pulsating vacuum exhausting has successfully eliminated the temperature influence from cold air, and helping the sterilization items to be dried by means of vacuum and dehumidification between the jacketed layers.

Structure and Characteristic of the Equipment

Body of the strilizer.

It is designcd and manufactured in accordance with GB150 *the Pressure Vessel. GB8599 The Technieal Requirements of Large Steam Serilier-Automatic Control Protocol". and TSG Rt004 the -Safety and Technology Specifieation for Fixcd Monitor VesseNi and related insetion procedures.

The chamber in horizontat rectangular shape with doublelayer structure is made from S3008

Doot sealing: Pneumatic scaling: both doors are interlocked and completely conform to the requirementsof the

specification

With standard GMP authentication interface.

Strlizer piping sysem: the pipeline is designed with the best configuration. All the spares are from qualified brands at homc and abroad.

Sterilizer control system: SIEMENS PLC and SIEMENS touch screen, this system is easy to implement thc program selection, parameter seting equipment opeation, report processing and other functions. It has prfect safety measures The FO valuc and thc temperature time gives doublc guarantee for selizaion A single parameter control is also available. It hasa prfect sterilization records.

Main Parameters and Utilities

Design Pressure	0.245Mpa	Working Pressure	0.225Mpa
Design Temperature	139℃	Working Temperature	105-134℃
Vacuum	-0.09Mpa	Temperature Equilibrium	≤±1℃
Water Source Pressure	0.15-0.3Mpa	Compressed Air Pressure	0.3-0.7Mpa
Steam Pressure	0.3-0.7Mpa	Power	AC380V, 50HZ The three-phase and five-wire system AC380V,50HZ

Size & Utilities

Model	Overall Size L×W×H(mm)	Chamber Size L×W×H(mm)	Steam Consumption(KG)	Tap Water Consumption(KG)	Power(KW)	Net Weight(KG)
WG-0.1	950×1200×1750	560×400×450	14KG	25KG	2+12KW	700KG
WG-0.15	1050×1200×1750	750×400×450	14KG	25KG	2+12KW	800KG
WG-0.2	1120×1305×1840	1000×450×450	16KG	30KG	2+24KW	850KG
WG-0.25	1100×1350×1900	800×600×600	18KG	35KG	2+24KW	900KG
WG-0.36	1300×1350×1900	1000×600×600	25KG	40KG	2+24KW	1000KG
WG-0.6	1500×1360×1950	1200×610×910	30KG	45KG	3+36KW	1400KG
WG-0.8	1800×1360×1950	1500×610×910	40KG	50KG	3KW	1600KG
WG-1.2	1750×1440×1950	1450×680×1180	48KG	55KG	4KW	1800KG
WG-1.5	2150×1440×1950	1850×680×1180	55KG	60KG	4KW	2000KG
WG-2.0	1950×1750×2200	1600×900×1400	65KG	65KG	4.5KW	2500KG
WG-2.5	2300×1750×2200	1950×900×1400	75KG	75KG	6KW	3000KG
WG-3.0	2700×1750×2200	2400×900×1400	90KG	90KG	8KW	3500KG
